CARPC - 2 Different Systems
KITT
CPU Configuration 1
The Thunder KITT CPU "Configuration 1" is equipped with
- a very less consumption Intel quadcore CPU on mini ITX (with> 2650 Avarage CPU Mark)
and rapresent the less consuption CarPC on the market, 8 Gbytes of DDR4 RAM, a fast 250GB
solid-state disk SSD
- 6 USB port (4 USB 3.1)
- Wi-Fi to manage the system remotely by Phone or Tablet
PRICE: 899 EURO
KITT
CPU Configuration 2
The Thunder KITT CPU "Configuration 2" is equipped with
- a very powerful AMD or Intel CPU on mini ITX (with about 9000 Avarage CPU Mark) and
rapresent on of the most powerfull CarPC on the market, 8 Gbytes of DDR4 RAM, a fast 250GB
solid-state disk SSD M.2, integrated Wi-Fi and BT 4.2 to manage the system remotely by
Phone or Tablet
- 8 USB port (4 USB 3.1)
All two system (Configuration 1 and 2) have in common
- 2 integrated video cards for 2 indipendent monitors for 1-2, 3-4 seasons ( 3 video cards
for the configuration 1 for having a third monitor in the central console )
- 3 built-in sound cards (no external USB ) to independently handle KITT voice over the
VoiceBox, external and internal audio, and more.
- Integrated power supply to connect directly to the car battery
- a GPS, for having real Speed in Tachometer Function, and to use the Geolocator and
SpeedEngine
- a noise reduction microphone
- 3 HD webcam for the Surveillance System and the Cam Motion function
- Infrared sensor for temperature surveillance (Optional)
- 16 Industrial relays using the RS-485 like CAN BUS protocol, particularly robust in
automotive environments where are present high electromagnetic interference. It is
possible to expand up to 120 Relays 15A, like in a network, on a single USB at long
distances, allowing you to position in the car each module where it is more convenient
with only 2 little wires. The relay boards are equipped with a protection box prepared for
fixing supports (it has no open circuits to avoid short circuits), led indicators, and
detachable terminals. The KNIGHT2000 Thunder System is also compatible with the relay
boards of other manufacturers such as ideegeniali
Dimensions are among the smallest 6 x 19 x 21.5 cm (ROS and CE certified) so that the CPU
can also be positioned behind the dashboard as well as in the most comfortable luggage
compartment.

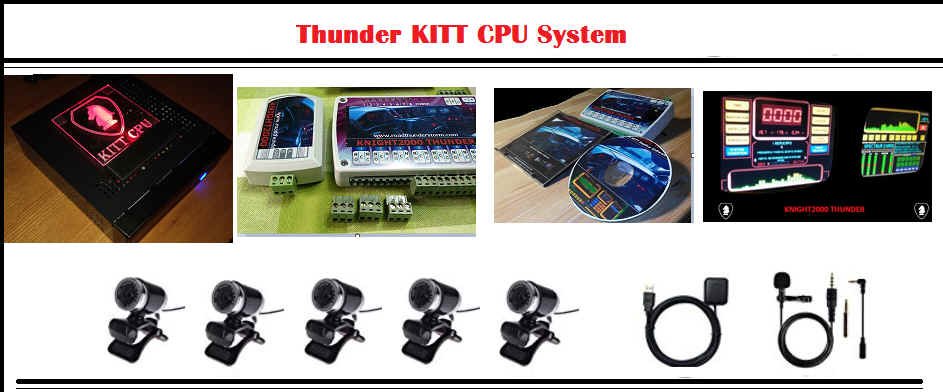

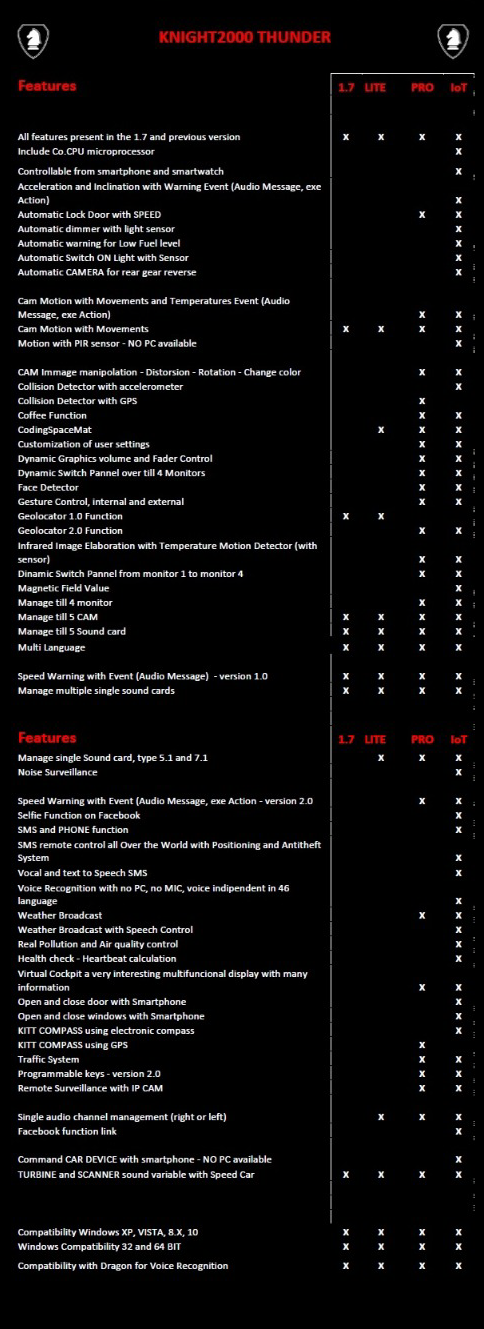

The Thunder KITT CPU System comes with the KNIGHT2000 Thunder 2.0 PRO
(https://www.youtube.com/watch?v=xZP7l8Sq05M), the well known KITT software Platform with
special graphics effects and special features like:
- Compass with GPS,
- Face Detection,
- CAM Image and Color Manipolation,
- Geolocator
- Weather broadcast with speech
- Virtual Cockpit
- Remote Surveillance with IP CAM
- Traffic System
- Programmable Keys
- Surveillance with temperature Infrared sensor (Optional)
Includes plug-ins and Function like Tachometer, SpeedEngine and MacroMaker Tool.
It is capable of handling up to 4 monitor, 5 webcams, one single 5.1 or 7.1 Audio, 5
indipendent audio cards or 10 indipendent mono channel, electric windows and 2/3 motors
electric seats without the need of additional polarity reversing circuits. Every relay is
interchangeable with any other one allowing to use every relay for every function.
All system come with WIN 10 pro and is already installed and ready to use and to be
installed in the car
It includes a detailed PDF document on the system and the use of the software
PRICE: 1099 EURO
|
